Professional Manufacturer Customized 3XL Soundproof Meeting Room for 8-10 people

Advantages of using a 3XL meeting room

1.Excellent sound insulation effect:Adopt high-performance sound insulation materials to effectively isolate external noise, ensure clear internal calls without interference, suitable for telephone conferences and private communication.

2.Can accommodate 6-8 people:It can accommodate 8 to 10 people at the same time, suitable for small team meetings, conference calls or collaborative discussions, providing a comfortable working space.

3.Easy to move and install:Factory direct sales, with high mobility, can easily adjust the position according to needs, adapt to different working environments and changes in places.

4.Flexible space layout:The interior is equipped with adjustable coffee tables and chairs, which users can flexibly adjust according to their needs to meet different office scenarios.

5.Improve work efficiency:Provide a quiet and focused environment to help users improve work efficiency and reduce external interference. It is suitable for multi-functional needs such as telephone conferences, video calls, and rest.

6.Modular design: The modular design of the partitions enables them to be flexibly customized according to different office needs, conveniently expanded or reduced, and adapted to different space layouts.

Detailed parameters of 3XL office pods

1.Dimensions:

External dimensions :	4000 x 3000 x 2250 mm
Inner dimensions:	3880 x 2895 x 2100 mm
Floor area:	11 m²
Table dimensions:	180 x 120 cm
Table height:	74 cm
Door dimensions:	90 x 225 cm – Reversible
Door free passage area:	88 cm
Fixed base:	Integrated adjustment levellers for easy interiorinterior access

2.Materials:

Structure:	Extruded aluminum proﬁle glass frame and 1 . 0 mm cold- pressed steel plate , Interior structural frames of the panels made of 50x30x1 . 5mm galvanized steel tube . With 40mm PET thick and a density of 2200 gr/ m2 .
External cladding:	1 .0 thickness cold-pressed waterproof and rust-proof steel plate , more durable than melamine particle board panel .
Interior cladding:	PET ECO 9mm panel y upholstered. Bottom panels with ventilation grille of sheet steel e = 1 .5mm .

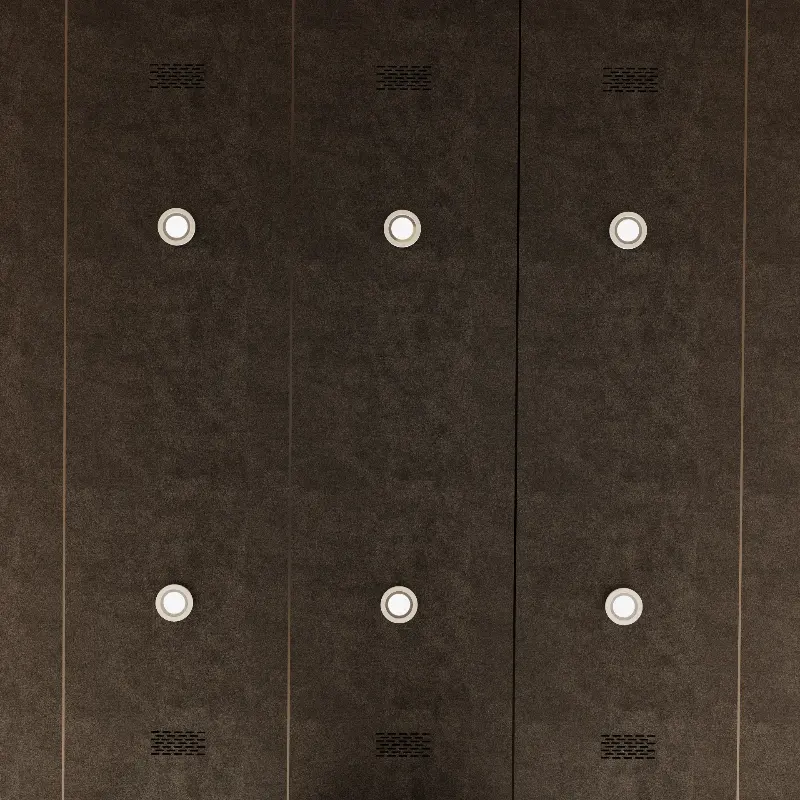

Roof coating:	Aluminum frame with 5 cm thick sound – absorbing cotton in the middle and 9mm PET ECO covering above and below.
Floor covering:	18 m m thic k ness M DF a nd high q uality soungproof carpet .
Tabletop:	Melamine chipboard table top e = 19mmLeg m a d e of l a m i n at e d a n d pi c kl e d st e e l tubing110x50 cm .

3.Technical information

Lighting :	2 longitudinal linear LED 8.6W-12V – 520mm;Daylight 4000K Simultaneous activation together with fans viapresence sensor.
Ventilation:	2 impellers in front + 4 extractors in roof.Ultra-thin + ultra-quiet fresh air exhaust fan speed: 750/1200 RPM ventilation, fan volume: 89/120 CFM average ventilation 110M3/H.
Acoustics:	Global Speech Reduction – ISO 23351-1:2020 TypeA (35 -40db)
Connectivity:	1 pcs 110v-220v 5-hole socket1, USB socket1, 1- position switch*Light and exhaust independent switch control.Connecting cablefrom cabinet: 2.5 m linear0.5 mL to GST18 connector + 2 mL from connectorto plug head.

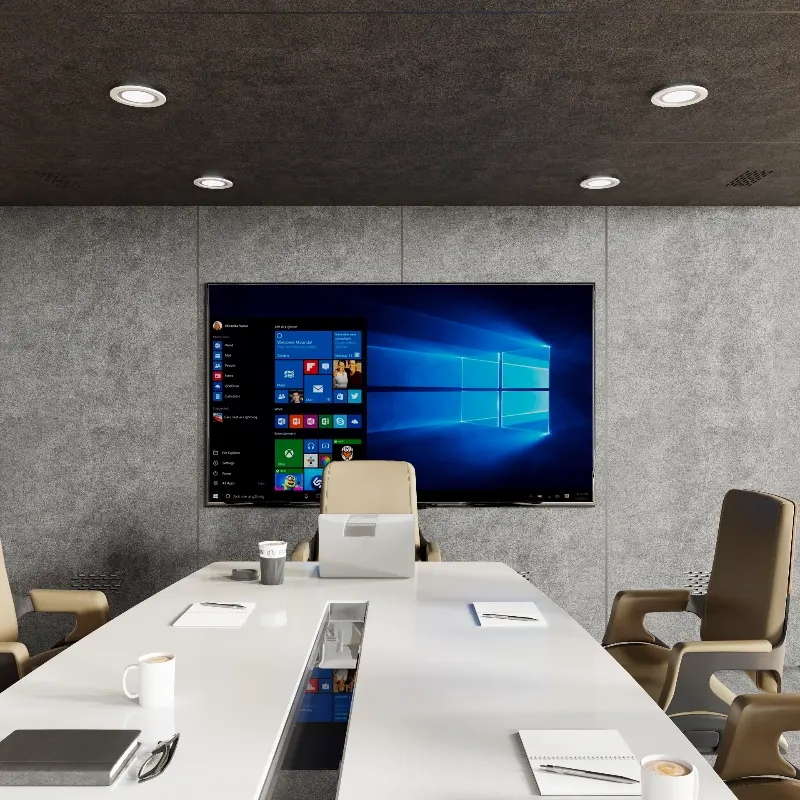

TV bracket:	Optional bracket for mounting screens withunivers al VESA 100 and 200 + 1 CS 120v-220v Max. size: 43” // Max. weight: 15 Kg
Flame retardant:	Elements certiﬁed B-s1-d0 against reaction to ﬁre- Standard EN 13501-1 + A1:2013

Configuration options of multiple people pods

10mm high-strength film tempered glass, door opens outwards, B. Interlayer: sound-absorbing material, sound insulation material, 9mm sound insulation environmentally friendly board.
Ultra-thin + ultra-quiet fresh air exhaust fan, speed: 750/1200 RPM, air volume: 89/120 CFM, average air exchange volume 110M3/H.
Contains anti-static and anti-fouling low-loop pile carpet.
Built-in 4000K natural light.
Furniture: high-quality fixed table.

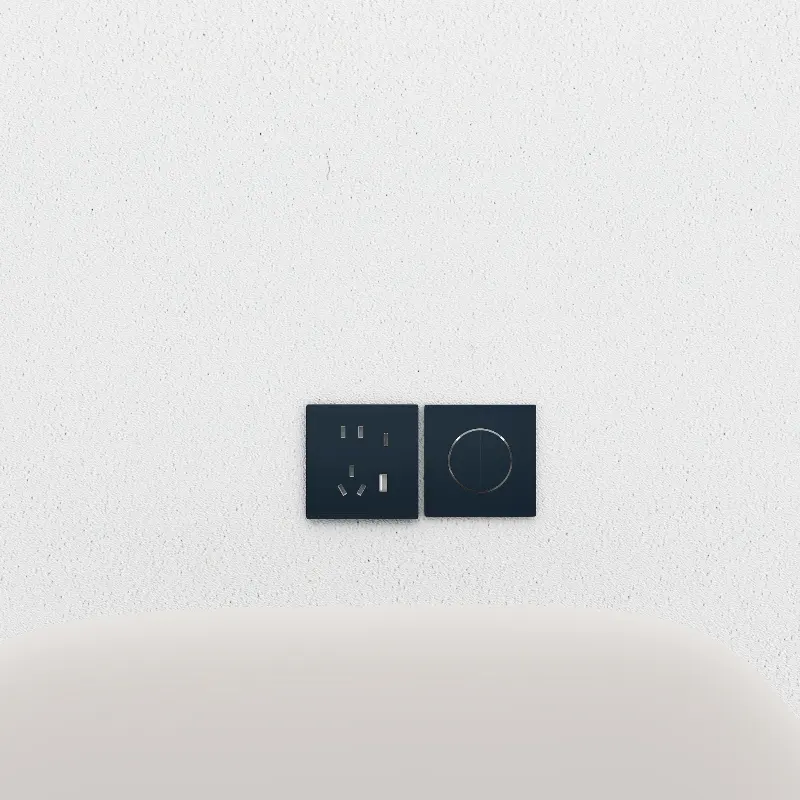

Power system: five-hole socket * 1, USB socket * 1, 1-speed switch * lighting, exhaust independent switch control.
Equipped with adjustable feet, movable wheels, fixed foot cups.
High-quality door locks can be selected according to customer requirements.
Colors can be customized according to customer requirements.

Application of 8-10 people 3XL meeting pods

1.Home: Provides a quiet space for remote work and study.
2.Office: Suitable for small team work and small meetings, ensuring concentration and privacy.
3.Airport: Provides soundproof rest and temporary office space for business travelers.
4.Station: Provides a quiet work and meeting space for business people.
5.Hospital: Provides a private communication space for doctors and patients, or as an administrative office area.
6.Hotel: Provides a quiet meeting or office space for guests.
7.Shopping mall: Provides a soundproof space for customers to consult and negotiate.

Why choose Tctcpod 3XL office boxes?

High-quality soundproofing: The pods are constructed with highly soundproofing materials, ensuring conversations remain private and external noise is minimized.
Customizable design: Tctcpod offers a range of customization options, allowing businesses to choose the size, color, and configuration that best suits their space and brand image.
Sustainability: Many of the materials used in the Tctcpod pods are environmentally friendly, in line with the growing emphasis on sustainable business practices.
Integrated technology: The pods are equipped with necessary technology such as power outlets, lighting, and ventilation to support an efficient work environment.
Easy installation: The pods are designed to be easy to install and can be set up without extensive construction.
Quality service: Tctcpod supports wholesale, retail, OEM/ODM/OBM, customized services.

FAQ (Frequently Asked Questions)

Q1: How easy is it to install the meeting pod?
► The meeting pod is easy to assemble with minimal tools and can typically be installed within a few hours. It comes with clear instructions, and we also provide installation services if needed.

Q2:How many people can comfortably use the office pod?
► The pod is designed to comfortably accommodate 8 to 10 people, offering enough space for small team discussions, video calls, or collaborative work.

Q3: How to ensure privacy and security?
► The meeting pods provide a closed space and lockable door design to ensure personal privacy and security.

Q4: Is there an option to add more features, like smart technology or screens?
► Yes, you can add features such as smart lighting, integrated screens, or sound systems for video conferencing, depending on your requirements. These features are customizable when placing your order.

Q5:Can the appearance or functions of the meeting pods be customized?
► Tctcpod provides customization services. The appearance, size, internal facilities, etc. of the telephone booth can be designed according to customer needs to meet the needs of different.
